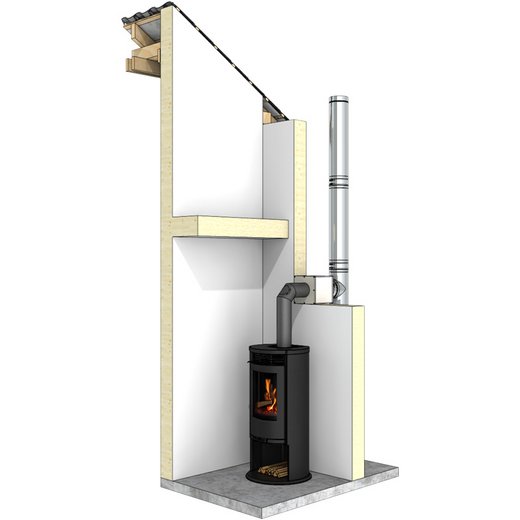

The LUX-NOVA fire protection duct is a variable-length wall, ceiling, and roof penetration system designed for passing chimneys, flue pipes, and connecting pieces through combustible materials. It is available in versions with and without a pipe cut-out.
Please observe the specifications of the approval!
| Material | Enclosure made of high-temperature resistant fire protection material |
|---|---|
| Nominal diameter | up to DN 250 mm |
| Installation dimensions | 430 x 430 mm, 480 x 480 mm (Dimension B),length up to 496 mm (Dimension A) up to 530 x 530 mm (only LUX-NOVA variant 2) length up to 496 mm (Dimension A) |
| Wall thickness | of the wall, ceiling, or roof to be penetrated: up to a maximum of 496 mm |
| LUX-NOVA |
|---|
APPROVAL NUMBERZ-7.4-3487 |
