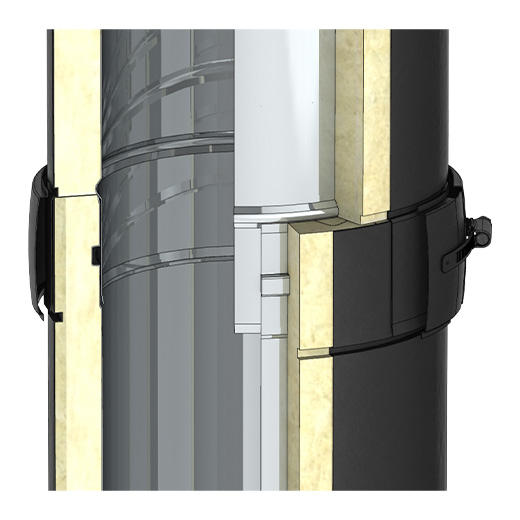

DW-Black is a cost-effective double-walled flue gas system made of stainless steel, featuring a matte black powder-coated outer casing that gives buildings a particularly modern touch. The chimney is suitable for all regulated heating systems operating under negative pressure with flue gas temperatures up to 450°C, and is equipped with a continuous insulation shell made of 25mm dense mineral wool between the inner and outer pipes.
* excluding anthracite coal from Ibbenbüren
| Material | Interior: L99 Exterior: Electro-galvanized |
|---|---|
| Surface | Matte black powder-coated (RAL 9011MB) Optional colors: DW-GREY (RAL7016M) DW-WHITE (RAL9010M) |
| Wall thickness | Interior: 0,5 mm Exterior: 0,5 mm |
| Inner diameter | 130 - 200 mm Others on request starting from 80 mm |
| Insulation | Mineral insulation starting from 25 mm thickness |
| Connection | Socket / bead connection with clamping band |
| Clamp | Included |
| DW-BLACK |
|---|
CE CERTIFICATE NUMBER0036 CPR 9174 137 |
CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1T450 - N1 - W - V2 - L99050 - G80 |
| DW-BLACK CONNECTION PIPE |
|---|
CE CERTIFICATE NUMBER0036 CPR 9174 138 |
CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-2T450 - N1 - W - V2 - L99050 - G170 M |
