single-wall exhaust system

Single-Wall Stainless Steel Chimney for Modernization or New Installation

The single-wall stainless steel chimney is ideal as a connecting line from the chimney to the boiler, for flue renovation in masonry chimneys, or for installation in lightweight chimneys. The installation of single-wall exhaust systems improves the draft in the chimney and meets the requirements for the operation of modern heating systems. The annular gap between the single-wall stainless steel pipe and the chimney wall can also be used for air supply.

Typically installed indoors, single-wall flue pipes are both condensate- and gas-tight and can withstand flue gas temperatures of up to 600°C and pressures of up to 5000 Pa, depending on the system. The single-wall stainless steel chimneys and the EW-PPS and EW-PP FLEX systems made from polypropylene are manufactured from high-quality materials and have CE certification.

Jeremias exhaust systems are made from high-quality stainless steel and come with a manufacturer’s warranty of up to 25 years. Single-wall exhaust systems are ideal for a variety of applications, especially as connecting lines or for chimney renovation.

Our Single-Wall Exhaust Systems in Overview

EW-FU

single-wall exhaust system made of stainless steel

Winkel Jeremias EW-FU
  • Socket / bead connection
  • Material: 1.4404 (316L) / 1.4571 (316Ti)
  • Soot fire resistant or moisture resistant

EW-ALBI

Pressure-tight exhaust system made of stainless steel

Winkel Jeremias EW-AL-BI
  • Socket / bead connection
  • Internal Special Seal
  • Material: 1.4404 (316L) / 1.4571 (316Ti)
  • Moisture resistant

EW-SILVER

Condensate acid-resistant exhaust system made of stainless steel

Winkel Jeremias EW-SILVER
  • Socket / bead connection
  • Material: 1.4539 (904L)
  • Soot fire resistant and moisture resistant

EW-LINE-FLEX FU

Flexible exhaust system made of stainless steel

Flexibles Rohr Jeremias EW-LINE-FLEX-FU
  • Socket / bead connection
  • Material: 1.4404 (316L)
  • Soot fire resistant or moisture resistant

EW-LINE-FLEX AL

Pressure-tight, flexible exhaust system made of stainless steel

Flexibles Rohr EW-LINE-FLEX-AL
  • Socket / bead connection
  • Internal Special Seal
  • Material: 1.4404 (316L)
  • Moisture resistant

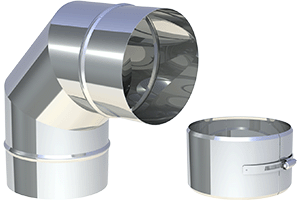

EW-KL

Conically sealing exhaust system made of stainless steel

Winkel Jeremias EW-KL
  • Conical Connection Technology
  • No separate seal required
  • Material: 1.4404 (316L) / 1.4571 (316Ti)
  • Soot fire resistant or moisture resistant
  • Suitable for high temperatures & high pressure
  • Conically adjustable length elements available

EW-PPS

Pressure-tight exhaust system made of plastic

Winkel mit Stützfuß und Auflageschiene Jeremias EW-PPS
  • Socket / bead connection
  • Internal EPDM Lip Seal
  • Material: PP (Polypropylene)
  • Moisture resistant

EW-PP-FLEX

Pressure-tight, flexible exhaust system made of plastic

Flexibles Rohr Jeremias EW-PP-FLEX
  • Socket / bead connection
  • Internal EPDM Lip Seal
  • Material: PP (Polypropylene)
  • Moisture resistant

System Comparison

Our single-wall stainless steel chimneys are available for various applications in a wide range of designs, materials, and surfaces. Here you will find a clear comparison of our single-wall exhaust systems:



  ↵

SystemOilGasSFWorking Temp.MaterialWall ThicknessTIGPressureCertificationClassification
EW-FU≤ 400 °C
≤ 600 °C		1.4571 / 1.44040,6 mmN10036 CPR 9176 006T400 - N1 - D - V2 - L50060 - Gxx
T400 - N1 - W - V2 - L50060 - Oxx
T600 - N1 - D - V2 - L50060 - Gxx
T600 - N1 - W - V2 - L50060 - Oxx
T600 - N1 - D - V3 - L50060 - Gxx 1
1 with 25 mm Insulation
EW-FU
Connection pipe		≤ 400 °C
≤ 600 °C		1.4571 / 1.44040,6 mmN10036 CPD 9174 026Without Radiation protection
T400 - N1 - D - V2 - L50060 - G400M
T400 - N1 - W - V2 - L50060 - O400M
T600 - N1 - D - V2 - L50060 - G400M
With Radiation protection
T400 - N1 - D - V2 - L50060 - G300
T400 - N1 - W - V2 - L50060 - O300
T600 - N1 - D - V2 - L50060 - G300
EW-SILVER≤ 400 °C
≤ 600 °C		1.45390,6 mmN1Z-7.1-3374T400 - N1 - W2 - F50 - L00
T600 - N1 - W2 - G100 - L00
EW-AL-B
(Sealing outside)		 ≤ 200 °C1.4571 / 1.44040,6 mmP1
200 Pa		0036 CPR 9174 016T200 - P1 - W - V2 - L50060 - O00
T200 - N1 - W - V2 - L50060 - O00
EW-AL-BI
(Sealing inside)		 ≤ 120 °C1.4571 / 1.4404
 		0,6 mm
 		P1
200 Pa
 		0036 CPR 9174 012
 		With EPDM-Sealing
T120 - P1 - W - V2 - L50060 - O00
T120 - N1 - W - V2 - L50060 - O00
 ≤ 200 °CWith Silicone-Sealing
T200 - P1 - W - V2 - L50060 - O00
T200 - N1 - W - V2 - L50060 - O00
EW-AL-BI
Connection pipe		 ≤ 120 °C1.4571 / 1.4404
 		0,6 mm
 		P1
200 Pa
 		0036 CPR 9174 052
 		With EPDM-Sealing
T120 - P1 - W - V2 - L50060 - O50M
T120 - N1 - W - V2 - L50060 - O50M
 ≤ 200 °CWith Silicone-Sealing
T200 - P1 - W - V2 - L50060 - O50M
T200 - N1 - W - V2 - L50060 - O50M
EW-LINE FLEX FU≤ 200 °C
≤ 400 °C
≤ 600 °C		1.44040,08 mm /
0,16 mm		 N10036 CPR 9174 013Flex single layer
T200 - N1 - W - V2 - L50008 - O
T400 - N1 - W - V2 - L50008 - G
T600 - N1 - W - V2 - L50008 - G
Flex two-layer (2 x 0,08 mm = 0,16 mm)
T200 - N1 - W - V2 - L50008 - O
T400 - N1 - W - V2 - L50008 - G
T600 - N1 - W - V2 - L50008 - G
Rigid inner pipes EW-FU
T200 - N1 - W - V2 - L50060 - O
T400 - N1 - W - V2 - L50060 - G
T600 - N1 - W - V2 - L50060 - G
EW-LINE FLEX AL ≤ 120 °C
≤ 200 °C		1.44040,08 mm /
0,16 mm		 P1
200 Pa		0036 CPR 9174 013Flex single layer
With Silicone sealant
T120 - P1 - W - V2 - L50008 - O
T200 - P1 - W - V2 - L50008 - O
Double-layer flexible (2 x 0,08 mm = 0,16 mm)
With Silicone sealant
T120 - P1 - W - V2 - L50008 - O
T200 - P1 - W - V2 - L50008 - O
Rigid inner pipes EW-AL-BI
With EPDM-Sealing
T120 - P1 - W - V2 - L50060 - O
With Silicone-Sealing
T200 - P1 - W - V2 - L50060 - O
EW-KL≤ 200 °C
≤ 400 °C
≤ 450 °C
≤ 600 °C		1.4571 / 1.44040,6 mmH1
5000 Pa		0036 CPR 9174 004T200 - P1 - W - V2 - L50060 - O00
T200 - H1 - W - V2 - L50060 - Oxx
T400 - N1 - D - V2 - L50060 - Gxx
T400 - P1 - W - V2 - L50060 - Oxx
T450 - H1 - W - V2 - L50060 - Oxx
T600 - N1 - D - V3 - L50060 - Gxx 1
T600 - P1 - W - V2 - L50060 - Oxx
T600 - H1 - W - V2 - L50060 - Gxx
1 with 25 mm Insulation
EW-KL
Connection pipe		≤ 200 °C
≤ 400 °C		1.4571 / 1.44040,6 mmH1
5000 Pa		0036 CPR 9174 042T200 - P1 - W - V2 - L50060 - O50M
T200 - H1 - W - V2 - L50060 - O50M
T400 - H1 - W - V2 - L50060 - G500M
T400 - N1 - D - V2 - L50060 - G400M
T400 - N1 - D - V2 - L50060 - G3001
1 with Radiation protection
EW-PPS
< DN200		 ≤ 120 °CPolypropylen2,0 mm H1
5000 Pa		0036 CPR 9174 043T120 - H1 - W2 - O20 - LI - E - U
EW-PPS
≥ DN 200		 ≤ 120 °CPolypropylen2,0 mm P1
200 Pa		0036 CPR 9174 043T120 - P1 - W2 - O20 - LI - E - U
EW-PP-FLEX
DN 60-100		 ≤ 120 °CPolypropylen1,0 mm (Ø080)
1,2 mm(Ø100)		 H1
5000 Pa		0036 CPR 9174 043T120 - H1 - W2 - O00 - LI - E - U0
EW-PP-FLEX
> DN 100-160		 ≤ 120 °CPolypropylen1,0 mm (Ø080)
1,2 mm (Ø100)		 P1
200 Pa		0036 CPR 9174 043T120 - P1 - W2 - O00 - LI - E - U0

NOTE
xx = The distances to combustible building materials are dependent on the diameter.
We refer to our declarations of performance, which are available to you under Downloads.

System comparison as PDF
Systemvergleich als pdf

Advantages of Jeremias EW Exhaust Systems

All our single-wall exhaust systems are characterized by:

  • CE certification or building authority approval
  • Easy assembly through precise elements and connections
  • No welding required on site
  • Stainless steel: TIG gas shielded welded and passivated longitudinal seams for maximum corrosion protection
  • Polypropylene (PP): heat element butt welded seams according to DVS 2207 T11
  • Condensate and gas tightness
  • For pressure systems, the use of high-quality sealing materials for a long service life
