Systemicon Edelstahlschornstein doppelwandig
Oil
Gas
Solid fuels
Negative pressure 40Pa
Dry operation mode
Temperature up to 400°C
Wall thickness 0.5mm
10 years warranty
room air independent mode
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Double wall exhaust system
  4. SET-ETN-SC

SET-ETN-SC

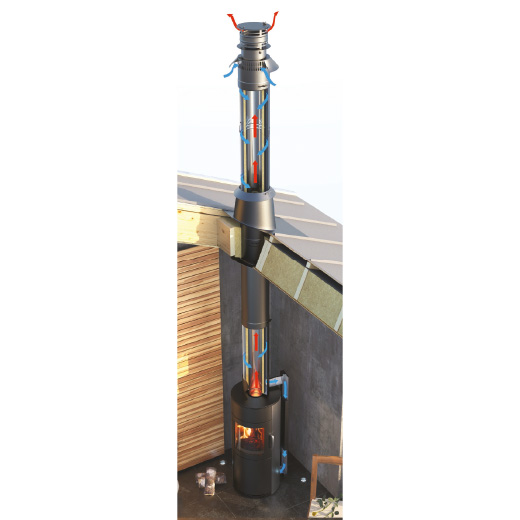

3 layer concentric chimney system for solid fuel room air independent fireplaces

The SET-ETN-SC is a three-layered, concentric chimney system designed for fireplaces working room air indepentent and using solid fuels. It features an inner pipe made of 1.4521 stainless steel, a wall thickness of 0.5 mm, and 25 mm mineral wool insulation. The male-female recessed connection allows a quick and easy installation without locking bands. The system is soot fire resistant, temperature resistant up to 400 °C and ideal for modern freestanding wood stoves.

SYSTEM_DETAIL_ICONS

Product Description

Features

  • Continuous working temperature ≤ 400 ° C
  • Resistant to soot fire
  • Lightweight, modular design allows quick and easy installation of the system
  • High quality and durability of the system
  • Smooth tubular column without locking bands

Applications

  • Modern freestanding wood burning stoves that draw combustion air from outside the building



Technical Data

MaterialInterior: 1.4539 (904L)
Exterior: 1.4301 (304)
Others on request
SurfaceHigh gloss
Optional: matte, painted, brushed, copper
Wall thicknessInterior: 0,6 mm
Exterior: 0,6 mm
Others on request
Inner diameter080 - 300 mm
Others on request
InsulationMineral insulation with 32.5 mm thickness
Others on request
ConnectionSocket / bead connection with clamping band
ClampIncluded
SET-ETN-SC

CE CERTIFICATION NUMBER

0036 CPR 9174 099

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1

T450 - N1 - D - V3 - L50050 -G50
