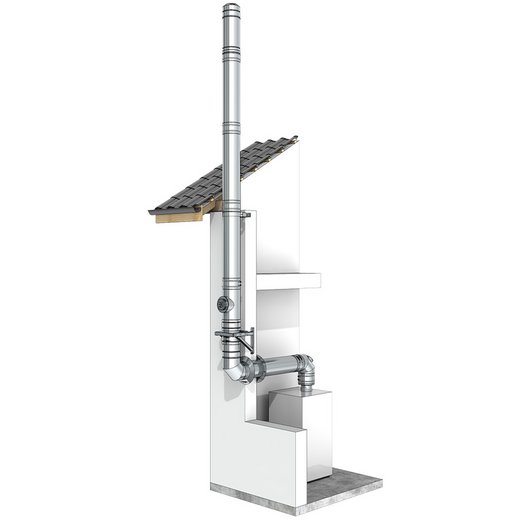

Montagebeispiel Edelstahlschornstein Jeremias DW-AL
Montagebeispiel Edelstahlschornstein Jeremias DW-AL
Detailbild Edelstahlschornstein Jeremias DW-AL
Winkel mit Revisionsöffnung Jeremias DW-AL
Revisionselement Edelstahlschornstein Jeremias DW-AL

DW-AL

Pressure-tight stainless steel chimney

The pressure-tight version of our classic DW-FU is the perfect external chimney for modern, highly efficient oil and gas heating systems, as well as condensing units that operate at low flue gas temperatures under positive pressure. Special seals made of EPDM (up to 120°C) or silicone (up to 200°C) make the double-walled flue gas system pressure-tight up to 200 Pa, while the 32.5 mm thick mineral insulation ensures that the flue gas flow remains constant even in cool outside temperatures. Thanks to the use of high-quality V4A stainless steel, moisture in the form of condensate does not affect the flue pipe, ensuring a long service life of the system—just like all Jeremias chimneys.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • DW-FU base components are pressure-tight by inserting a seal into a formed groove
  • Additional, special DW-AL supplementary components available
  • Resistant to moisture

Applications

  • Regulated heating systems for oil and gas
  • Condensing units

Technical Data

MaterialInterior: 1.4404 (316L) or 1.4571 (316Ti)
Exterior: 1.4301 (304)
Others on request
SurfaceHigh gloss
Optional: matte, painted, brushed, copper
Wall thicknessInterior: 0,6 mm
Exterior: 0,6 mm
Others on request
Inner diameter080 - 600 mm
Others on request
InsulationMineral insulation, 32,5 mm thickness
Others on request

Connection

Socket / bead connection with internal special seal and external clamping band

Clamp

Included
If no T-connector is used in the system, an additional clamping band for the termination must be ordered separately
SealEPDM seal ALBI367 (up to 120°C)
Silicone seal ALBI26 (up to 200°C)
DW-AL

CE CERTIFICATE NUMBER

0036 CPR 9174 003

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1

With EPDM-Sealing:
T120 - N1 - W - V2 - L50060 - O00
T120 - P1 - W - V2 - L50060 - O00

With Silicone-Sealing:
T200 - N1 - W - V2 - L50060 - O00
T200 - P1 - W - V2 - L50060 - O00

DW-AL CONNECTION PIPE

CE CERTIFICATE NUMBER

0036 CPR 9174 050

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-2

With EPDM-Sealing:
T120 - P1 - W - V2 - L50060 - O00M
T120 - N1 - W - V2 - L50060 - O00M

With Silicone-Sealing:
T200 - P1 - W - V2 - L50060 - O00M
T200 - N1 - W - V2 - L50060 - O00M
