Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Single wall exhaust system
  4. EW-LINE FLEX AL

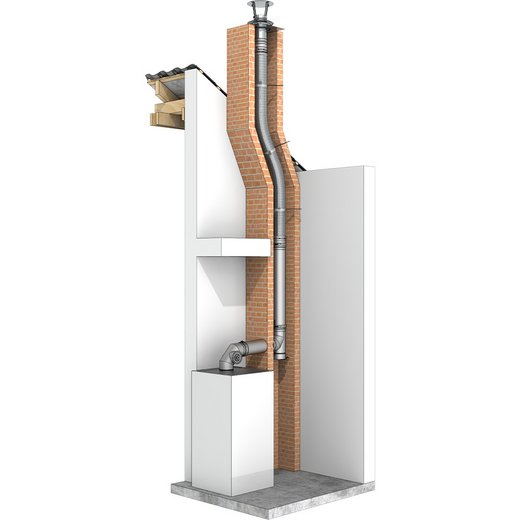

Montagebeispiel Jeremias EW-LINE-FLEX-AL
Montagebeispiel Jeremias EW-LINE-FLEX-AL
Flexibles Rohr Jeremias EW-LINE-FLEX-AL
Winkel mit Stützfuß Jeremias EW-LINE-FLEX-AL
Detailbild Jeremias EW-LINE-FLEX-AL
Detailbild Jeremias EW-LINE-FLEX-AL

EW-LINE FLEX AL

Pressure-tight flexible exhaust system made of stainless steel

The single-wall, flexible, and pressure-tight system flue gas line made of stainless steel is ideal for renovating existing house chimneys with offsets. It can be easily introduced into the chimney from the outlet. The flexible pipes can be easily combined with the base components of the EW-AL-BI system. The supplied sealing rings made of EPDM or silicone ensure that the system is pressure-tight up to 200 Pa, making it perfect for connecting to pressure appliances for oil and gas, as well as condensing units.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Pressure-tight
  • Easy installation without breaking into the shaft at angles
  • Moisture resistant
  • Smooth inner wall in double-layer design
  • Compatible with base components of the EW-AL-BI system

Applications

  • Standard heating appliances for oil and gas
  • Condensing units

Technical Data

Material1.4404 (316L)
1.4539 (904L) available for an additional charge (only double-layer, wall thickness 0.18 mm, no DIBt-SILVER approval)
SurfaceMatte
Wall Thickness0,6 mm (rigid inner pipes EW-AL-BI)
0,08 mm (single-layer flexible)
0,16 mm (double-layer flexible)
Others on request
Inner Diameter80 - 250 mm, others available upon request up to 400 mm (flexible pipes)
80 - 250 mm (rigid inner pipes EW-AL-BI)
ConnectionSocket / bead connection with an internally bonded special seal and approved sealing compound for the flexible connection
SealingEPDM-Sealing ALBI367 (up to 120°C)
Silicone-Sealing ALBI26 (up to 200°C)
EW-LINE FLEX AL

CE CERTIFICATE NUMBER

0036 CPR 9174 013





CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-2

Flex single layer
With Silicone sealant:
T120 - P1 - W - V2 - L50008 - O
T200 - P1 - W - V2 - L50008 - O

Flex two-layer (2x 0,08 = 0,16)
With Silicone sealant​​​​​​​:
T120 - P1 - W - V2 - L50008 - O
T200 - P1 - W - V2 - L50008 - O

Rigid inner pipes
With EPDM-Sealing:
T120 - P1 - W - V2 - L50060 - O

With Silicone-Sealing:
T200 - P1 - W - V2 - L50060 - O
