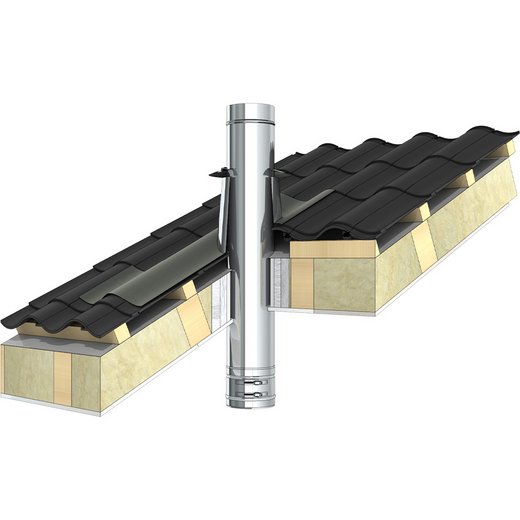

Detailbild Jeremias LUX-ECO
Muster Dachdurchführung Jeremias LUX-ECO
Muster Wanddurchführung Jeremias LUX-ECO

LUX-ECO

Affordable Fire Protection Duct

The LUX-ECO fire protection duct is an affordable wall, ceiling, and roof duct for single-wall and double-wall flue gas systems and connectors.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Approved for the passage of single-wall and double-wall flue gas systems and connectors
  • Max. flue gas temperature of the connected appliance: 400°C (T400)
  • Significant reduction of lateral spacing for flue pipe ducts compared to fire protection regulations (FeuVo)
  • Particularly practical for slanted roof penetrations and installation in external insulation on buildings

Specifics

  • Only 125 mm distance from the inner pipe to combustible materials
  • Max. length when used as a wall duct ≤ 360 mm (see approval)
  • Max. length when used as a ceiling or roof duct ≤ 500 mm
  • Wall, ceiling, and roof ducts can be shortened to the desired length
  • Please refer to the details in the approval



Technical Data

MaterialPipe shell made of non-combustible glass fiber insulation Variotherm
Nominal diameterup to DN 250 mm
Lenghts500 mm oder 1000 mm
can be shortened to the desired installation length
Wall thicknessup to a maximum of 360 mm
Ceiling thicknessup to a maximum of 500 mm
LUX-ECO

APPROVAL NUMBER

Z-7.4-3469
(for walls up to a maximum of 360 mm, for ceilings and roofs up to a maximum of 500 mm)
