Systemicon LAS-Schornstein
Gas
Negative pressure 40Pa
Wet operation mode
Temperature up to 600°C
Wall thickness 0,5 mm
Room air-independent operation
Discount group TWIN
25 years warranty
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Concentric exhaust system
  4. TWIN-GAS

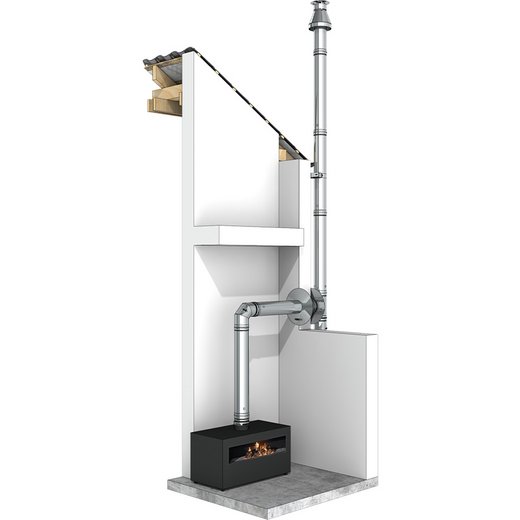

Montagebeispiel Jeremias TWIN-GAS
Montagebeispiel Jeremias TWIN-GAS
Winkel Jeremias TWIN-GAS
Terminal vertikal Jeremias TWIN-GAS
Detailbild Jeremias TWIN-GAS

TWIN-GAS

Concentric Flue System for Decorative Gas Fireplaces

The concentric flue system TWIN-GAS has been specially designed to meet the unique requirements of decorative gas fireplaces and gas stoves that operate independently of room air. Fresh air intake occurs through the annular space between the inner and outer stainless steel pipes, and a special seal in the outer casing prevents any exchange between combustion air and room air.

TWIN-GAS is suitable for flue gas temperatures up to 600°C and has been system-certified by many manufacturers of decorative gas fireplaces and gas stoves in conjunction with their appliances, making it approved only in this combination.



SYSTEM_DETAIL_ICONS

Product Description

Features

  • Moisture-resistant
  • Pressure-tight outer pipe with bonded silicone lip seal
  • Prevents exchange with room air in the installation space

Applications

  • Decorative gas fireplaces

System Certification

The Jeremias TWIN-GAS flue system is already system-certified by many manufacturers of decorative gas fireplaces and stoves, and it is approved only in this combination.

Current system certifications include partnerships with: Glen Dimplex (Faber Fireplaces), Bellfires (formerly Interfocus), Element4, Ortal, STUV, Attika, Camina Schmid, Max Blank, Hoxter, Metalfire.

If your gas fireplace manufacturer is not on this list, please feel free to inquire with them. We are always available for further system certifications.

Technical Data

MaterialInterior: 1.4404 (316L)
Exterior: 1.4301 (304)
SurfaceHigh gloss
Wall thicknessInterior: 0,5 mm
Exterior: 0,5 mm
Inner diameter100/150 mm and 130/200 mm
ConnectionSocket / bead connection with internally bonded special seal in the outer pipe
ClampIncluded in the standard delivery of each element
TWIN-GAS

CE CERTIFICATE NUMBER

0036 CPR 9174 078

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1

T400 - N1 - W - V2 - L50040 - O50
T600 - N1 - W - V2 - L50040 - O50

TWIN-GAS CONNECTION PIPE

CE CERTIFICATE NUMBER

0036 CPR 9174 090

0036 CPR 9174 126 (TWIN-GAS-VISION)

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-2

T400 - N1 - W - V2 - L50040 - O100M
T600 - N1 - W - V2 - L50040 - O100M
