Systemicon Edelstahlschornstein doppelwandig
Solid fuels
Negative pressure 40Pa
Wet operation mode
Temperature up to 600°C
Wall thickness 0,5 mm
Insulation 50mm
Discount group DW
25 years warranty
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Double wall exhaust system
  4. SAUNA-SET

SAUNA-SET

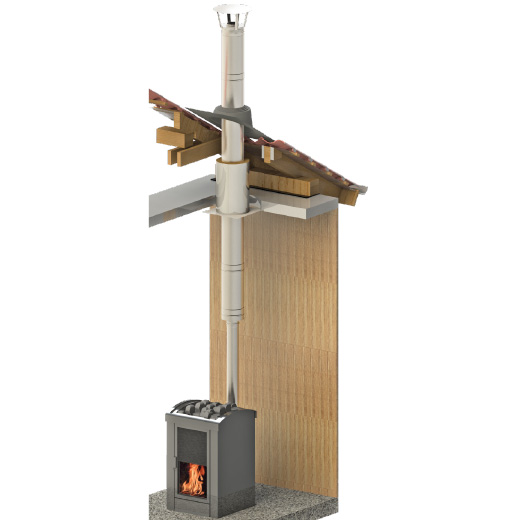

Double wall insulated stainless steel chimney system especially for solid fuel sauna stoves

The SAUNA-SET is a double-wall insulated stainless steel chimney system designed for sauna stoves using solid fuels. It is made of high-quality stainless steel, is corrosion-resistant due to TIG-welded and passivated seams, and features 50 mm thick mineral insulation. The socket/bead plug connection with a locking band which ensures easy and secure installation. The system is soot fire resistant, CE-certified, and complies with DIN EN 1856-1.

SYSTEM_DETAIL_ICONS

Product Description

Features

  • Soot fire resistant or moisture resistant

Applications

  • Standard heating appliances for oil, gas, solid fuels (natural wood, coke, peat, coal, anthracite*)
  • Especially designed for solid fuel saunas

* excluding anthracite coal from Ibbenbüren

Technical Data

MaterialInterior: 1.4521 (444)
Exterior: 1.4301 (304)
PREMIUM:
Interior: 1.4404 (316)
SurfaceHigh gloss
Optional: matte, painted, brushed, copper
Wall thicknessInterior: 0.5 mm
Exterior: 0.5 mm
Inner diameter115 mm
InsulationMineral insulation, 50 mm thickness, density 120 kg/m³
Seam connectionTIG gas-shield welded and passicated longitudinal seams for maximum possible corrosion protection
ConnectionSocket/bead plug-and-socket connection with locking band
Flow resistance1.0 mm
Thermal resistance> 0.23 m² K/W
SAUNA-SET

CE CERTIFICATION NUMBER

0036 CPR 9174 062

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1

T600 - N1 - W - V2 - L99050 - Gxx
T400 - N1 - W - V2 - L99050 - Oxx
T600 - N1 - W - V2 - L99050 - Oxx


xx = Clearances in relation to flammable materials dependon the Ø, see declaration of performance
