Systemicon LAS-Schornstein
Oil
Gas
Over pressure up to 5000Pa
Wet operation mode
Temperature up to 120°C
Wall thickness 2 mm
Room air-independent operation
Discount group TWIN

TWIN-PL

Pressure-tight concentric connection line

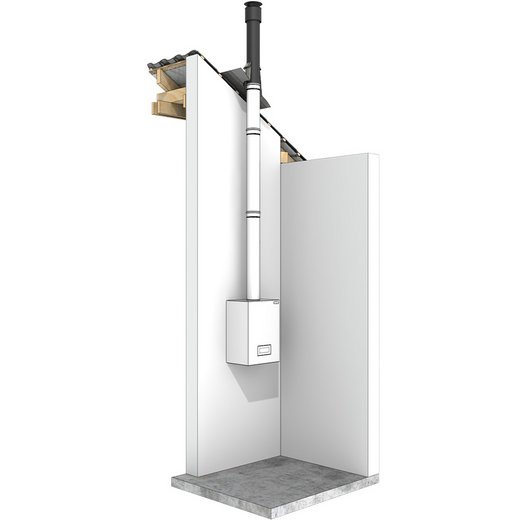

The concentric, pressure-tight flue pipe TWIN-PL, featuring a plastic inner pipe and galvanized outer pipe, is designed for indoor use only. It is typically used as a connection line from an air-independent combustion appliance to the chimney, but can also be utilized when the appliance serves as a roof heating center. Depending on the chosen diameter, the system is pressure-tight up to 200 Pa or even up to 5000 Pa.

This pipe-in-pipe system utilizes the annular space between the flue gas-carrying inner pipe and the outer shell for controlled air supply and is compatible with the TWIN-P, EW-PPS, and EW-PP-FLEX systems.


SYSTEM_DETAIL_ICONS


Product Description

Features

  • Connection of boiler systems in air-independent operation to concentric or single-walled flue systems
  • Compatibility with TWIN-P, EW-PPS, EW-PP FLEX
  • Use of the appliance as a roof heating center is possible

Applications

  • Flue gas duct for air-independent operation
  • Condensing boilers
  • Combined heat and power units (CHP)
  • Gas-fired heat pumps
  • Fuel cells
  • Indoor use

Technical Data

MaterialInterior: PP (Polypropylene)
Exterior: electro-galvanized, powder-coated
SurfaceWhite, powder-coated (RAL9016)
Wall thicknessInterior: 2,0 mm
Exterior: 0,5-0,6 mm
Inner diameter060/100 mm, 080/125 mm, 100/150 mm and110/160 mm
ConnectionSocket / bead connection with internal special seal in both the flue gas and outer pipe
ClampSealing ring pre-assembled in the inner and outer pipes
No clamp required
TWIN-PL

CE CERTIFICATE NUMBER

0036 CPR 9174 043

CE CLASSIFICATIONS ACCORDING TO DIN EN 14471

TWIN-PL < DN 200
T120 - H1 - W2 - O00 - LI - E - U0

TWIN-PL  DN 200
T120 - P1 - W2 - O00 - LI - E - U0
