Systemicon Leichtbauschornstein
Solid fuels
Negative pressure 40Pa
Dry operation
Temperature up to 400°C
Insulation 25 mm
Discount group SC
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Lightweight chimney and wall duct
  4. FURADO-F-LAS

FURADO-F-LAS

Lightweight Chimney System for Room-Air-Independent Solid Fuel Heating Appliances

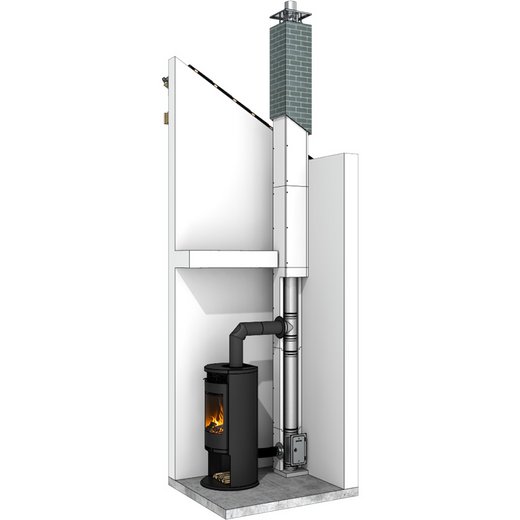

The concentric lightweight chimney system FURADO-F-LAS is the shaft variant for room-air-independent solid fuel heating appliances. It consists of calcium silicate fire protection plates and Jeremias inner pipes from the EW-FU system, as well as insulation shells with a thickness of 25 mm. The required supply air to the heating appliance is routed through the gap between the insulation and the shaft.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Excellent insulation properties
  • Easy to handle and installation-friendly due to low weight
  • Secure connection technology through tongue-and-groove joints
  • Various inner pipe solutions and shaft cladding options meet all requirements
  • Small distances to combustible materials
  • 25 m shaft height without intermediate support
  • Structural set for heights over the roof up to 3 m

Applications

  • LAS operation for solid fuels (single installation)
  • Regular heating appliances for solid fuels (natural wood, coke, peat, coal*)
  • New construction and renovation

* excluding anthracite coal from Ibbenbüren

Technical Data

MaterialCalcium silicate fire protection boards
Wall thickness50 mm
Others on request
Internal shaft dimensions140 x 140 mm to 360 x 360 mm
FURADO-F-LAS

APPROVAL NUMBER

System Shaft Approval:
Z - 7.1 - 3480

CLASSIFICATIONS ACCORDING TO DIN V18160-1

For solid fuel heating appliances:
System Shaft Approval:
T400 - N1 - D - 3 - G50 - LA90
with Jeremias inner pipe EW-FU
(Wall thickness of the shaft 50mm, 25mm insulation,
annular gap according to Jeremias design,
minimum 50mm distance to combustible materials)
