Systemicon Abgassysteme einwandig
Oil
Gas
Solid fuels
Negative pressure 40Pa
Wet operation mode
Temperature up to 600°C
Wall thickness 0,6 mm
Discount group EW
25 years warranty
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Single wall exhaust system
  4. EW-SILVER

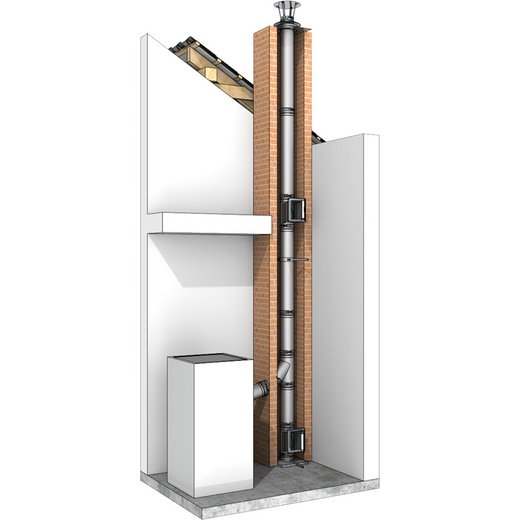

Montagebeispiel Jeremias EW-SILVER
Detailbild Jeremias EW-SILVER

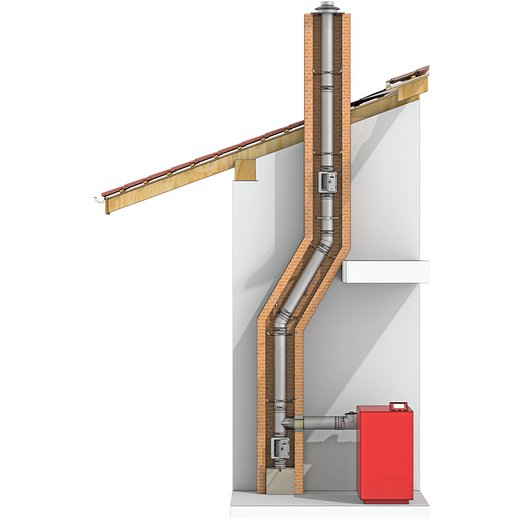

Montagebeispiel Jeremias EW-SILVER
Muster Jeremias EW-SILVER
Winkel mit Revisionsöffnung Jeremias EW-SILVER

EW-SILVER

Condensate acid-resistant single-wall exhaust system made of stainless steel

The condensate acid-resistant exhaust system EW-SILVER made of high-alloy stainless steel 1.4539 allows for condensing operation even after a soot fire has occurred. Thus, this single-wall exhaust system, which is fundamentally suitable for all types of fuels, is particularly well-suited for modern biomass heating appliances that operate at low flue gas temperatures and are fueled by untreated wood chips, firewood, or wood pellets according to DIN 51731.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Soot fire resistant and moisture resistant
  • Quick assembly and uncomplicated angled guidance due to lightweight material
  • Optional fixation with clamping bands
  • Available optionally as an oval pipe, ideal for tight and multi-flue systems
  • Wide variety of systems and extensive range of accessories

Applications

  • Standard heating appliances for oil, gas, and solid fuels
  • Wood pellets, wood chips, and firewood made from untreated wood

    Technical Data

    Material1.4539 (904L) only for flue gas-contacted components
    SurfaceMatte
    Wall Thickness0,6 mm
    Others on request
    Inner Diameter80 - 300 mm
    Others on request
    InsulationOptional available with insulation jackets
    ConnectionSocket / bead connection
    EW-SILVER

    APPROVAL NUMBER

    Z-7.1-3374

    CLASSIFICATIONS ACCORDING TO DIN V 18160 - 1

    T400 - N1 - W21 - G50 - L00
    T600 - N1 - W21 - G100 - L00

    1 for wood pellets or wood chips made from untreated wood, for untreated firewood, for gas and heating oil EL



    Downloads

    References

    Application AreaPublic Buildings
    System typeBoiler / Steam boiler / Gas boiler
    SystemDouble-walled exhaust system
    ProductDW-ECO 2.0 AL, DW-ECO 2.0
    Diameter550mm, 500mm
    Heighteach 9 m
