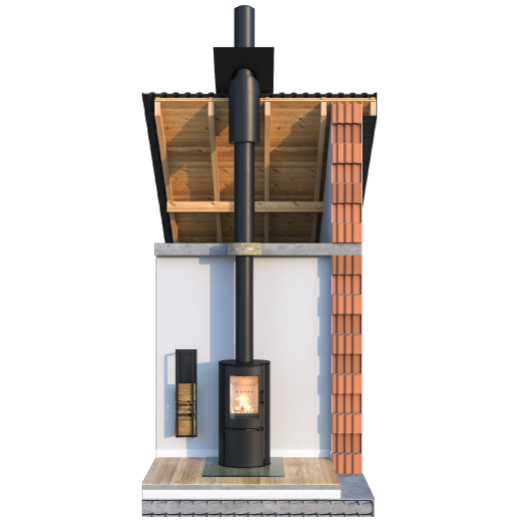

The designer chimney: DW-VISION-SCAN is a double-wall stainless steel chimney with smooth tubular column and and without locking bands. It is characterized by an elegant design with a matt black finish (RAL 9011MB) and is optionally available in brushed stainless steel or other colors.
* excluding anthracite coal from Ibbenbüren
| Material | Interior: 1.4404 (316L) or 1.4571 (316Ti) Exterior: electrolytically galvanized Others on request |
|---|---|
| Surface | Painted black mat RAL 9011MB Optional: brushed stainless steel, other colors |
| Wall thickness | Interior: 0,6 mm Exterior: 0,6 mm Others on request |
| Inner diameter | 130, 150, 200 mm |
| Insulation | Mineral insulation with 32.5 or 50 mm thickness |
| Connection | Push-fit connection, no locking bands needed |
| DW-VISION-SCAN |
|---|

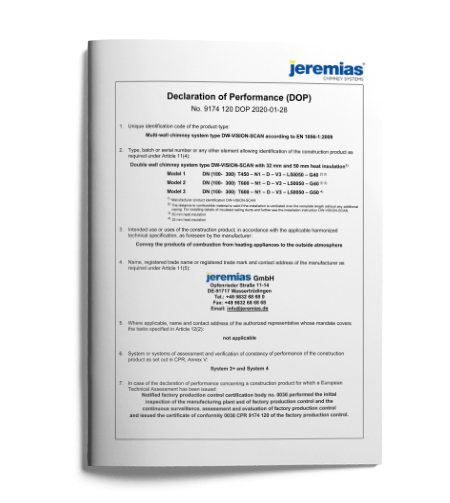

CE CERTIFICATE NUMBER0036 CPR 9174 120 |
CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1T450 - N1 - D - V3 - L50050 - G40 |
| DW-VISION-SCAN CONNECTION PIPE |
|---|
CE CERTIFICATE NUMBER0036 CPR 9174 122 |
CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-2T450 - N1 - D - V3 - L50050 - G100M |
