Systemicon Edelstahlschornstein doppelwandig
Oil
Gas
Solid fuels
Negative pressure 40Pa
Wet operation mode
Temperature up to 600°C
Wall thickness 0,6 mm
Insulation 32,5 mm
Discount group DW
25 years warranty
Jeremias® Abgastechnik - chimney systems
  2. Products
  3. Double wall exhaust system
  4. DW-SILVER

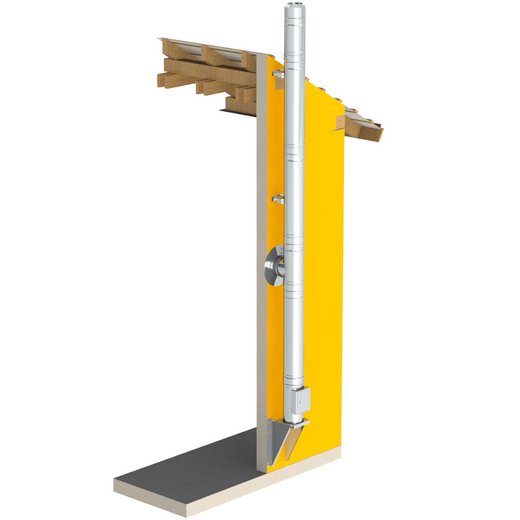

Montagebeispiel Edelstahlschornstein Jeremias DW-SILVER

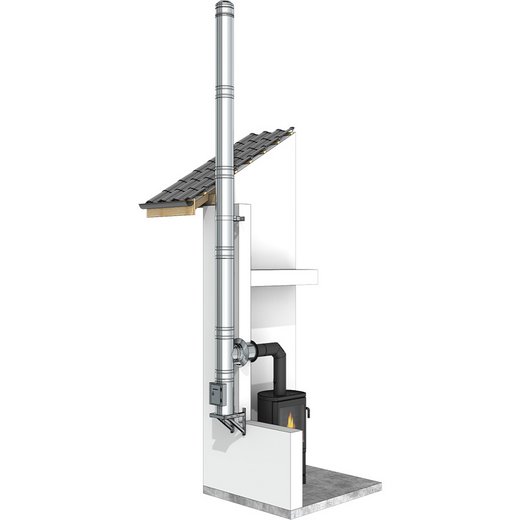

Montagebeispiel Edelstahlschornstein Jeremias DW-SILVER
Winkel mit Revisionsöffnung Edelstahlschornstein Jeremias DW-SILVER
Revisionselement Edelstahlschornstein Jeremias DW-SILVER
Muster Edelstahlschornstein Jeremias DW-SILVER
Detailbild Edelstahlschornstein Jeremias DW-SILVER
Muster Edelstahlschornstein Jeremias DW-SILVER

DW-SILVER

Condensate-acid-resistant, double-walled chimney

The double-walled system chimney DW-SILVER is the condensate-acid-resistant version of our classic DW-FU. Due to its inner pipe made of high-alloy stainless steel 1.4539, it is also suitable for the specific requirements of biomass heating systems, such as wood chips, firewood, and wood pellets according to DIN 51731, when operating in condensing mode. Even after a soot fire, the system can continue to operate in a wet condition without issues.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Soot fire resistant and moisture-resistant
  • Especially suitable for the discharge of flue gases from the combustion of pellets or wood chips in condensing operation
  • Versatile flue gas system
  • High flexibility for realizing even challenging installation situations

Applications

  • Regulated heating systems for oil, gas, and solid fuels
  • Wood pellets, wood chips, and firewood from untreated wood



Technical Data

MaterialInterior: 1.4539 (904L)
Exterior: 1.4301 (304)
Others on request
SurfaceHigh gloss
Optional: matte, painted, brushed, copper
Wall thicknessInterior: 0,6 mm
Exterior: 0,6 mm
Others on request
Inner diameter080 - 300 mm
Others on request
InsulationMineral insulation with 32.5 mm thickness
Others on request
ConnectionSocket / bead connection with clamping band
ClampIncluded
DW-SILVER

APPROVAL NUMBER

Z-7.1-3375

CLASSIFICATION ACCORDING TO DIN V 18160-1

T600 - N1 - W21) - G50 - L00

1) - for wood pellets made from untreated wood
- for wood chips made from untreated wood
- for untreated firewood
- for gas and heating oil EL
