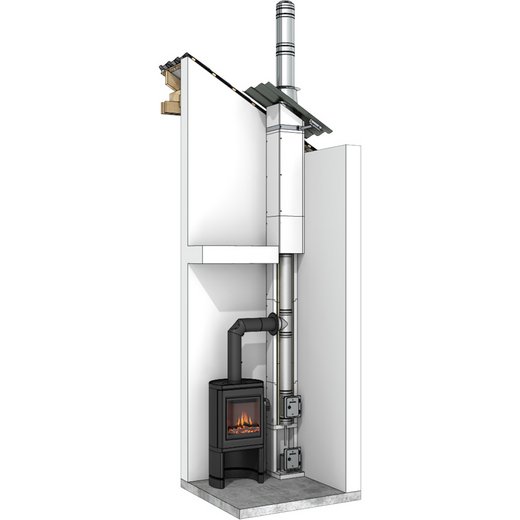

Montagebeispiele Jeremias FURADO-F
Montagebeispiel Jeremias FURADO-F
Detailbild Jeremias FURADO-F
Detailbild Jeremias FURADO-F
Basiselement mit Ausschnitt Jeremias FURADO-F
Winkel Jeremias FURADO-F

FURADO-F

Lightweight chimney system for solid fuel heating appliances

The FURADO-F is a lightweight chimney system consisting of calcium silicate fire protection panels with Jeremias inner pipes EW-FU or EW-KL and 25 mm insulation shells for heating appliances powered by solid fuels. The roof installation can be realized using the systems DW-ECO 2.0, DW-FU, or as a shaft with cladding.


Alternatively, the FURADO-F can also be used as an installation shaft for CE-certified inner pipes or construction-approved inner pipes from the EW-SILVER system, with a minimum of 25 mm insulation shells.


SYSTEM_DETAIL_ICONS

Product Description

Features

  • Very good insulation properties
  • Handy and easy to install due to the low weight
  • Secure connection technology through tongue-and-groove joints
  • Various inner pipe solutions and shaft claddings meet all requirements
  • Small distances to combustible materials
  • 25 m shaft installation height without intermediate support
  • Structural set for installation heights above the roof up to 3 m

Applications

  • Standard combustion appliances for solid fuels
    (natural wood, coke, peat, coal*)
  • New construction and renovation

* excluding anthracite coal from Ibbenbüren

Technical Data

MaterialCalcium silicate fire protection boards
Wall thickness50 mm
Others on request
Internal shaft dimensions140 x 140 mm to 360 x 360 mm
Others on request
FURADO-F

CE CERTIFICATION NUMBER

0036 CPR 9174 073

CE CLASSIFICATIONS ACCORDING TO DIN EN 1856-1

T400 - N1 - D - V3 - L50050 - Gxx
(Wall thickness shaft 50mm, 25mm insulation)
T600 - N1 - D - V3 - L50050 - Gxx
(Wall thickness shaft 60mm, 25mm insulation, min. 20mm annular gap)

xx = The distances to combustible materials depend on the diameter, see the performance declaration



FURADO-F

APPROVAL NUMBER

Z-7.4-3478 / Z-7.4-3482 / Z-7.4-3483

CLASSIFICATIONS ACCORDING TO DIN V 18160-1

T400 - LA90
(Wall thickness shaft 50mm, 25mm insulation, min. 50mm distance to combustible materials)
T600 - LA90
(Wall thickness shaft 60mm, 25mm insulation, min. 20mm annular gap, min. 50mm distance to combustible materials)
